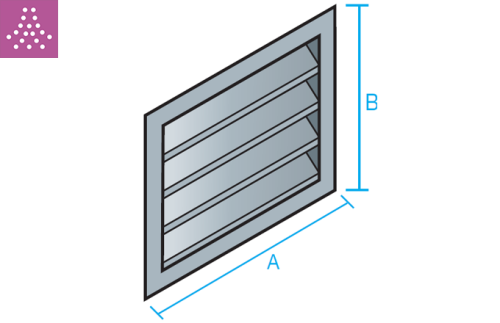

La rejilla de toma de aire exterior (TAE) es el elemento terminal diseñado específicamente para la aspiración de aire primario o la expulsión de aire viciado hacia el exterior. Su robusta estructura cuenta con lamas fijas diseñadas para impedir la entrada de agua de lluvia. La característica fundamental de este modelo es la incorporación de una tela metálica (malla antipájaros) en su parte posterior, que actúa como filtro mecánico para evitar la entrada de insectos, hojas o pequeños animales al sistema de conductos.
Fabricada en aluminio extruido de alta calidad, es ideal para montaje en fachadas y muros exteriores de naves industriales, locales comerciales y edificios residenciales. Su diseño aerodinámico asegura un paso de aire fluido con mínima pérdida de presión, mientras que su construcción resistente garantiza una larga vida útil frente a la corrosión y las inclemencias climáticas. Es la solución profesional para asegurar una renovación de aire segura y protegida en cualquier instalación de climatización o VMC.
| A (mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B (mm) | € | € | € | € | € | € | € | € | € | € | € | € | € | € | € | € | € | € |
| 200 | 81,00 Ref. 244300200 | 90,00 Ref. 244400200 | 98,99 Ref. 244500200 | 107,99 Ref. 244600200 | 119,24 Ref. 244700200 | 130,49 Ref. 244800200 | 143,98 Ref. 244900200 | 150,73 Ref. 2441000200 | 157,48 Ref. 2441100200 | 164,23 Ref. 2441200200 | 175,48 Ref. 2441300200 | 186,74 Ref. 2441400200 | 197,98 Ref. 2441500200 | 213,72 Ref. 2441600200 | 229,48 Ref. 2441700200 | 242,98 Ref. 2441800200 | 254,22 Ref. 2441900200 | 263,22 Ref. 2442000200 |
| 300 | 81,00 Ref. 244300300 | 94,49 Ref. 244400300 | 107,99 Ref. 244500300 | 143,98 Ref. 244600300 | 164,23 Ref. 244700300 | 175,48 Ref. 244800300 | 186,74 Ref. 244900300 | 197,98 Ref. 2441000300 | 213,72 Ref. 2441100300 | 229,48 Ref. 2441200300 | 251,98 Ref. 2441300300 | 274,47 Ref. 2441400300 | 296,97 Ref. 2441500300 | 314,97 Ref. 2441600300 | 330,71 Ref. 2441700300 | 353,21 Ref. 2441800300 | 375,70 Ref. 2441900300 | 395,95 Ref. 2442000300 |
| 400 | 94,49 Ref. 244300400 | 125,99 Ref. 244400400 | 143,98 Ref. 244500400 | 166,49 Ref. 244600400 | 197,98 Ref. 244700400 | 211,48 Ref. 244800400 | 229,48 Ref. 244900400 | 263,22 Ref. 2441000400 | 296,97 Ref. 2441100400 | 330,71 Ref. 2441200400 | 353,21 Ref. 2441300400 | 375,70 Ref. 2441400400 | 395,95 Ref. 2441500400 | 427,46 Ref. 2441600400 | 458,95 Ref. 2441700400 | 494,94 Ref. 2441800400 | 512,94 Ref. 2441900400 | 528,69 Ref. 2442000400 |
| 500 | 107,99 Ref. 244300500 | 143,98 Ref. 244400500 | 164,23 Ref. 244500500 | 197,98 Ref. 244600500 | 229,48 Ref. 244700500 | 263,22 Ref. 244800500 | 296,97 Ref. 244900500 | 330,71 Ref. 2441000500 | 362,22 Ref. 2441100500 | 395,95 Ref. 2441200500 | 429,70 Ref. 2441300500 | 461,20 Ref. 2441400500 | 494,94 Ref. 2441500500 | 528,69 Ref. 2441600500 | 562,44 Ref. 2441700500 | 593,93 Ref. 2441800500 | 627,68 Ref. 2441900500 | 661,42 Ref. 2442000500 |
| 600 | 143,98 Ref. 244300600 | 166,49 Ref. 244400600 | 197,98 Ref. 244500600 | 229,48 Ref. 244600600 | 296,97 Ref. 244700600 | 330,71 Ref. 244800600 | 371,21 Ref. 244900600 | 395,95 Ref. 2441000600 | 429,70 Ref. 2441100600 | 461,20 Ref. 2441200600 | 494,94 Ref. 2441300600 | 562,44 Ref. 2441400600 | 593,93 Ref. 2441500600 | 627,68 Ref. 2441600600 | 692,93 Ref. 2441700600 | 726,66 Ref. 2441800600 | 760,41 Ref. 2441900600 | 791,91 Ref. 2442000600 |
| 700 | 164,23 Ref. 244300700 | 197,98 Ref. 244400700 | 229,48 Ref. 244500700 | 296,97 Ref. 244600700 | 330,71 Ref. 244700700 | 362,22 Ref. 244800700 | 429,70 Ref. 244900700 | 461,20 Ref. 2441000700 | 528,69 Ref. 2441100700 | 562,44 Ref. 2441200700 | 593,93 Ref. 2441300700 | 661,42 Ref. 2441400700 | 692,93 Ref. 2441500700 | 726,66 Ref. 2441600700 | 791,91 Ref. 2441700700 | 825,65 Ref. 2441800700 | 890,90 Ref. 2441900700 | 924,65 Ref. 2442000700 |
| 800 | 175,48 Ref. 244300800 | 211,48 Ref. 244400800 | 263,22 Ref. 244500800 | 330,71 Ref. 244600800 | 362,22 Ref. 244700800 | 429,70 Ref. 244800800 | 494,94 Ref. 244900800 | 528,69 Ref. 2441000800 | 593,93 Ref. 2441100800 | 627,68 Ref. 2441200800 | 692,93 Ref. 2441300800 | 726,66 Ref. 2441400800 | 791,91 Ref. 2441500800 | 859,40 Ref. 2441600800 | 890,90 Ref. 2441700800 | 958,39 Ref. 2441800800 | 1.023,64 Ref. 2441900800 | 1.057,37 Ref. 2442000800 |
| 900 | 186,74 Ref. 244300900 | 229,48 Ref. 244400900 | 296,97 Ref. 244500900 | 371,21 Ref. 244600900 | 429,70 Ref. 244700900 | 494,94 Ref. 244800900 | 528,69 Ref. 244900900 | 593,93 Ref. 2441000900 | 661,42 Ref. 2441100900 | 726,66 Ref. 2441200900 | 760,41 Ref. 2441300900 | 825,65 Ref. 2441400900 | 890,90 Ref. 2441500900 | 958,39 Ref. 2441600900 | 1.023,64 Ref. 2441700900 | 1.091,12 Ref. 2441800900 | 1.124,87 Ref. 2441900900 | 1.190,11 Ref. 2442000900 |
| 1000 | 197,98 Ref. 2443001000 | 263,22 Ref. 2444001000 | 330,71 Ref. 2445001000 | 395,95 Ref. 2446001000 | 461,20 Ref. 2447001000 | 528,69 Ref. 2448001000 | 593,93 Ref. 2449001000 | 661,42 Ref. 24410001000 | 726,66 Ref. 24411001000 | 791,91 Ref. 24412001000 | 859,40 Ref. 24413001000 | 924,65 Ref. 24414001000 | 992,13 Ref. 24415001000 | 1.057,37 Ref. 24416001000 | 1.124,87 Ref. 24417001000 | 1.190,11 Ref. 24418001000 | 1.255,36 Ref. 24419001000 | 1.282,35 Ref. 24420001000 |
| 1100 | 213,72 Ref. 2443001100 | 296,97 Ref. 2444001100 | 362,22 Ref. 2445001100 | 429,70 Ref. 2446001100 | 528,69 Ref. 2447001100 | 593,93 Ref. 2448001100 | 661,42 Ref. 2449001100 | 726,66 Ref. 24410001100 | 791,91 Ref. 24411001100 | 890,90 Ref. 24412001100 | 958,39 Ref. 24413001100 | 1.023,64 Ref. 24414001100 | 1.091,12 Ref. 24415001100 | 1.156,36 Ref. 24416001100 | 1.221,61 Ref. 24417001100 | 1.282,35 Ref. 24418001100 | 1.347,60 Ref. 24419001100 | 1.410,59 Ref. 24420001100 |
| 1200 | 229,48 Ref. 2443001200 | 330,71 Ref. 2444001200 | 395,95 Ref. 2445001200 | 461,20 Ref. 2446001200 | 562,44 Ref. 2447001200 | 627,68 Ref. 2448001200 | 726,66 Ref. 2449001200 | 791,91 Ref. 24410001200 | 890,90 Ref. 24411001200 | 958,39 Ref. 24412001200 | 1.023,64 Ref. 24413001200 | 1.124,87 Ref. 24414001200 | 1.190,11 Ref. 24415001200 | 1.255,36 Ref. 24416001200 | 1.282,35 Ref. 24417001200 | 1.347,60 Ref. 24418001200 | 1.410,59 Ref. 24419001200 | 1.538,82 Ref. 24420001200 |
| 1300 | 251,98 Ref. 2443001300 | 353,21 Ref. 2444001300 | 429,70 Ref. 2445001300 | 494,94 Ref. 2446001300 | 593,93 Ref. 2447001300 | 692,93 Ref. 2448001300 | 760,41 Ref. 2449001300 | 859,40 Ref. 24410001300 | 958,39 Ref. 24411001300 | 1.023,64 Ref. 24412001300 | 1.124,87 Ref. 24413001300 | 1.190,11 Ref. 24414001300 | 1.282,35 Ref. 24415001300 | 1.347,60 Ref. 24416001300 | 1.475,83 Ref. 24417001300 | 1.538,82 Ref. 24418001300 | 1.601,81 Ref. 24419001300 | 1.667,05 Ref. 24420001300 |
| 1400 | 274,47 Ref. 2443001400 | 375,70 Ref. 2444001400 | 461,20 Ref. 2445001400 | 562,44 Ref. 2446001400 | 661,42 Ref. 2447001400 | 726,66 Ref. 2448001400 | 825,65 Ref. 2449001400 | 924,65 Ref. 24410001400 | 1.023,64 Ref. 24411001400 | 1.124,87 Ref. 24412001400 | 1.190,11 Ref. 24413001400 | 1.282,35 Ref. 24414001400 | 1.347,60 Ref. 24415001400 | 1.475,83 Ref. 24416001400 | 1.538,82 Ref. 24417001400 | 1.601,81 Ref. 24418001400 | 1.732,29 Ref. 24419001400 | 1.799,79 Ref. 24420001400 |
| 1500 | 296,97 Ref. 2443001500 | 395,95 Ref. 2444001500 | 494,94 Ref. 2445001500 | 593,93 Ref. 2446001500 | 692,93 Ref. 2447001500 | 791,91 Ref. 2448001500 | 890,90 Ref. 2449001500 | 992,13 Ref. 24410001500 | 1.091,12 Ref. 24411001500 | 1.190,11 Ref. 24412001500 | 1.282,35 Ref. 24413001500 | 1.347,60 Ref. 24414001500 | 1.475,83 Ref. 24415001500 | 1.538,82 Ref. 24416001500 | 1.601,81 Ref. 24417001500 | 1.732,29 Ref. 24418001500 | 1.799,79 Ref. 24419001500 | 1.925,77 Ref. 24420001500 |
| 1600 | 314,97 Ref. 2443001600 | 427,46 Ref. 2444001600 | 528,69 Ref. 2445001600 | 627,68 Ref. 2446001600 | 726,66 Ref. 2447001600 | 859,40 Ref. 2448001600 | 958,39 Ref. 2449001600 | 1.057,37 Ref. 24410001600 | 1.156,36 Ref. 24411001600 | 1.255,36 Ref. 24412001600 | 1.347,60 Ref. 24413001600 | 1.347,60 Ref. 24414001600 | 1.538,82 Ref. 24415001600 | 1.601,81 Ref. 24416001600 | 1.732,29 Ref. 24417001600 | 1.799,79 Ref. 24418001600 | 1.925,77 Ref. 24419001600 | 2.051,76 Ref. 24420001600 |
| 1700 | 330,71 Ref. 2443001700 | 458,95 Ref. 2444001700 | 562,44 Ref. 2445001700 | 692,93 Ref. 2446001700 | 791,91 Ref. 2447001700 | 890,90 Ref. 2448001700 | 1.023,64 Ref. 2449001700 | 1.124,87 Ref. 24410001700 | 1.221,61 Ref. 24411001700 | 1.282,35 Ref. 24412001700 | 1.475,83 Ref. 24413001700 | 1.538,82 Ref. 24414001700 | 1.601,81 Ref. 24415001700 | 1.732,29 Ref. 24416001700 | 1.858,28 Ref. 24417001700 | 1.925,77 Ref. 24418001700 | 2.051,76 Ref. 24419001700 | 2.179,99 Ref. 24420001700 |
| 1800 | 353,21 Ref. 2443001800 | 494,94 Ref. 2444001800 | 593,93 Ref. 2445001800 | 726,66 Ref. 2446001800 | 825,65 Ref. 2447001800 | 958,39 Ref. 2448001800 | 1.091,12 Ref. 2449001800 | 1.190,11 Ref. 24410001800 | 1.282,35 Ref. 24411001800 | 1.347,60 Ref. 24412001800 | 1.538,82 Ref. 24413001800 | 1.601,81 Ref. 24414001800 | 1.732,29 Ref. 24415001800 | 1.799,79 Ref. 24416001800 | 1.925,77 Ref. 24417001800 | 2.051,76 Ref. 24418001800 | 2.179,99 Ref. 24419001800 | 2.308,22 Ref. 24420001800 |
| 1900 | 376,74 Ref. 2443001900 | 512,94 Ref. 2444001900 | 627,68 Ref. 2445001900 | 760,41 Ref. 2446001900 | 890,90 Ref. 2447001900 | 1.023,64 Ref. 2448001900 | 1.124,87 Ref. 2449001900 | 1.255,36 Ref. 24410001900 | 1.347,60 Ref. 24411001900 | 1.410,59 Ref. 24412001900 | 1.601,81 Ref. 24413001900 | 1.732,29 Ref. 24414001900 | 1.799,79 Ref. 24415001900 | 1.925,77 Ref. 24416001900 | 2.051,76 Ref. 24417001900 | 2.179,99 Ref. 24418001900 | 2.308,22 Ref. 24419001900 | 2.436,46 Ref. 24420001900 |
| 2000 | 395,95 Ref. 2443002000 | 528,69 Ref. 2444002000 | 661,42 Ref. 2445002000 | 791,91 Ref. 2446002000 | 924,65 Ref. 2447002000 | 1.057,37 Ref. 2448002000 | 1.190,11 Ref. 2449002000 | 1.282,35 Ref. 24410002000 | 1.410,59 Ref. 24411002000 | 1.538,82 Ref. 24412002000 | 1.667,05 Ref. 24413002000 | 1.799,79 Ref. 24414002000 | 1.925,77 Ref. 24415002000 | 2.051,76 Ref. 24416002000 | 2.179,99 Ref. 24417002000 | 2.308,22 Ref. 24418002000 | 2.436,46 Ref. 24419002000 | 2.564,70 Ref. 24420002000 |
