La rejilla de impulsión de simple deflexión es el elemento clásico y versátil para la distribución de aire en sistemas de climatización. Su diseño consta de una serie de lamas horizontales orientables individualmente, lo que permite dirigir el chorro de aire de forma ascendente o descendente según las necesidades de confort de la estancia. Fabricada habitualmente en aluminio extruido, ofrece una excelente resistencia y un acabado estético limpio y atemporal.
Gracias a su baja resistencia al paso del aire, es la opción ideal para instalaciones que requieren mover grandes volúmenes de aire con un nivel sonoro mínimo. Su uso está ampliamente extendido en oficinas, viviendas y locales comerciales, tanto para impulsión como para retorno de aire. Es una solución económica y profesional que garantiza una correcta circulación del flujo de aire, siendo muy fácil de instalar y mantener en cualquier tipo de pared o conducto rectangular.

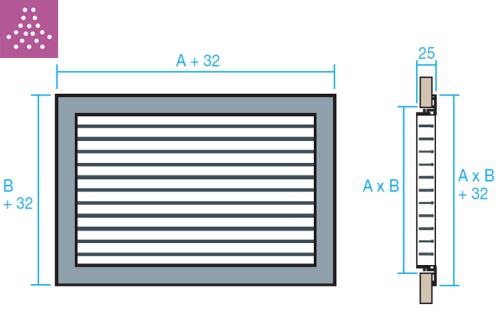

| A (mm) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B (mm) | € | € | € | € | € | € | € | € | € | € | € | € | € | € |
| 600 | 43,88 Ref. 424100600 | 49,35 Ref. 424150600 | 54,90 Ref. 424200600 | 61,15 Ref. 424250600 | 67,33 Ref. 424300600 | |||||||||
| 700 | 51,19 Ref. 424100700 | 57,60 Ref. 424150700 | 64,04 Ref. 424200700 | 71,33 Ref. 424250700 | 78,57 Ref. 424300700 | |||||||||
| 800 | 58,50 Ref. 424100800 | 65,81 Ref. 424150800 | 73,17 Ref. 424200800 | 81,51 Ref. 424250800 | 89,77 Ref. 424300800 | |||||||||
| 900 | 65,82 Ref. 424100900 | 74,04 Ref. 424150900 | 82,36 Ref. 424200900 | 91,70 Ref. 424250900 | 100,99 Ref. 424300900 | |||||||||
| 100 | 17,18 Ref. 424100100 | 17,47 Ref. 424150100 | 17,70 Ref. 424200100 | 20,00 Ref. 424250100 | 21,87 Ref. 424300100 | 23,50 Ref. 424350100 | 25,11 Ref. 424400100 | 26,95 Ref. 424450100 | 28,76 Ref. 424500100 | 35,59 Ref. 424600100 | 40,40 Ref. 424700100 | 41,81 Ref. 424800100 | 45,23 Ref. 424900100 | 48,56 Ref. 4241000100 |
| 150 | 19,50 Ref. 4240100150 | 21,23 Ref. 424150150 | 21,49 Ref. 424200150 | 23,77 Ref. 424250150 | 26,37 Ref. 424300150 | 27,98 Ref. 424350150 | 30,01 Ref. 424400150 | 32,02 Ref. 424450150 | 34,09 Ref. 424500150 | 42,29 Ref. 424600150 | 47,51 Ref. 424700150 | 50,87 Ref. 424800150 | 55,73 Ref. 424900150 | 60,49 Ref. 4241000150 |
| 200 | 20,11 Ref. 424100200 | 22,73 Ref. 4240150200 | 24,92 Ref. 424200200 | 27,62 Ref. 424250200 | 30,22 Ref. 424300200 | 32,45 Ref. 424350200 | 34,91 Ref. 424400200 | 37,11 Ref. 424450200 | 39,29 Ref. 424500200 | 52,67 Ref. 424600200 | 56,75 Ref. 424700200 | 61,18 Ref. 424800200 | 67,58 Ref. 424900200 | 72,52 Ref. 4241000200 |
| 250 | 22,73 Ref. 424100250 | 25,78 Ref. 424150250 | 28,69 Ref. 4240200250 | 29,41 Ref. 424250250 | 33,86 Ref. 424300250 | 36,24 Ref. 424350250 | 39,43 Ref. 424400250 | 42,55 Ref. 424450250 | 45,61 Ref. 424500250 | 58,96 Ref. 424600250 | 65,15 Ref. 424700250 | 70,36 Ref. 424800250 | 77,61 Ref. 424900250 | 82,97 Ref. 4241000250 |
| 300 | 25,51 Ref. 424100300 | 28,69 Ref. 424150300 | 32,02 Ref. 424200300 | 35,10 Ref. 4240250300 | 37,61 Ref. 424300300 | 40,94 Ref. 424350300 | 44,33 Ref. 424400300 | 48,07 Ref. 424450300 | 51,94 Ref. 424500300 | 70,07 Ref. 424600300 | 75,10 Ref. 424700300 | 81,04 Ref. 424800300 | 87,66 Ref. 424900300 | 95,73 Ref. 4241000300 |
| 350 | 27,80 Ref. 424100350 | 31,38 Ref. 424150350 | 34,92 Ref. 424200350 | 38,47 Ref. 424250350 | 42,10 Ref. 424300350 | 43,53 Ref. 424350350 | 47,51 Ref. 424400350 | 51,01 Ref. 424450350 | 55,98 Ref. 424500350 | 77,10 Ref. 424600350 | 83,45 Ref. 424700350 | 90,40 Ref. 424800350 | 98,02 Ref. 424900350 | 107,17 Ref. 4241000350 |
| 400 | 30,82 Ref. 424100400 | 33,98 Ref. 424150400 | 37,83 Ref. 424200400 | 41,86 Ref. 424250400 | 45,95 Ref. 424300400 | 49,23 Ref. 424350400 | 52,18 Ref. 424400400 | 55,98 Ref. 424450400 | 61,18 Ref. 424500400 | 87,38 Ref. 424600400 | 94,81 Ref. 424700400 | 102,14 Ref. 424800400 | 110,97 Ref. 424900400 | 121,39 Ref. 4241000400 |
| 450 | 32,89 Ref. 424100450 | 37,62 Ref. 424150450 | 41,86 Ref. 424200450 | 46,48 Ref. 424250450 | 51,10 Ref. 424300450 | 54,86 Ref. 424350450 | 58,70 Ref. 4240400450 | 61,73 Ref. 424450450 | 65,84 Ref. 424500450 | 94,45 Ref. 424600450 | 103,00 Ref. 424700450 | 110,89 Ref. 424800450 | 121,59 Ref. 424900450 | 131,97 Ref. 4241000450 |
| 500 | 36,57 Ref. 424100500 | 41,14 Ref. 424150500 | 45,73 Ref. 424200500 | 50,95 Ref. 424250500 | 56,12 Ref. 424300500 | 60,50 Ref. 424350500 | 64,89 Ref. 424400500 | 67,10 Ref. 4240450500 | 71,64 Ref. 424500500 | 105,12 Ref. 424600500 | 114,95 Ref. 424700500 | 123,59 Ref. 424800500 | 134,51 Ref. 424900500 | 147,74 Ref. 4241000500 |
| 1000 | 73,13 Ref. 4241001000 | 82,27 Ref. 4241501000 | 91,50 Ref. 4242001000 | 101,92 Ref. 4242501000 | 112,24 Ref. 4243001000 |
