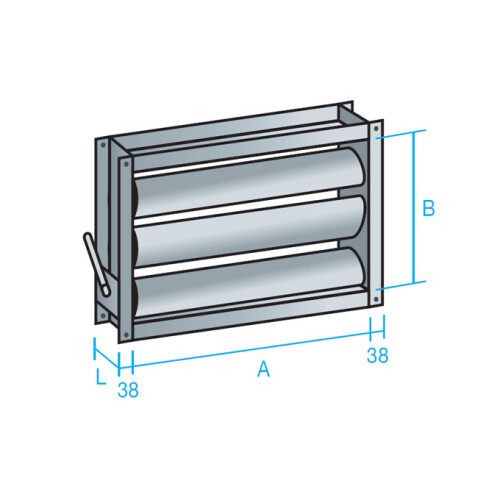

Nuestra compuerta de regulación rectangular con mando manual es el componente esencial para el equilibrado de redes en sistemas de ventilación y climatización. Diseñada para una conexión directa a conducto rectangular, cuenta con un robusto marco tipo ”U” y placa de mando en acero galvanizado, garantizando una excelente resistencia estructural y durabilidad frente a la corrosión en entornos industriales.
El diseño destaca por sus lamas de forma aerodinámica, disponibles en anchuras de 100 y 165 mm, que permiten una transición de aire suave con mínima pérdida de carga. El accionamiento es extremadamente fiable gracias a su sistema de cojinetes y contracojinetes de nylon, que aseguran un movimiento fluido y sin mantenimiento. Una solución económica y profesional para la gestión de flujos de aire en instalaciones HVAC.
* Nota: Palanca no incluida. Consultar para acabados especiales bajo demanda.
| A (mm) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1300 | 1400 | 1600 | 1800 | 2000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B (mm) | € | € | € | € | € | € | € | € | € | € | € | € | € | € | € |
| 200 | 75,46 Ref. 9220200200 | 78,97 Ref. 9220300200 | 82,48 Ref. 9220400200 | 85,99 Ref. 9220500200 | 89,50 Ref. 9220600200 | 93,01 Ref. 9220700200 | 96,52 Ref. 9220800200 | 100,03 Ref. 9220900200 | 112,30 Ref. 92201200200 | 115,82 Ref. 92201300200 | |||||
| 300 | 96,52 Ref. 9220200300 | 100,03 Ref. 9220300300 | 103,54 Ref. 9220400300 | 108,80 Ref. 9220500300 | 112,30 Ref. 9220600300 | 115,82 Ref. 9220700300 | 121,09 Ref. 9220800300 | 126,34 Ref. 9220900300 | 142,14 Ref. 92201200300 | 147,40 Ref. 92201300300 | |||||
| 400 | 115,82 Ref. 9220200400 | 121,09 Ref. 9220300400 | 126,34 Ref. 9220400400 | 129,86 Ref. 9220500400 | 135,12 Ref. 9220600400 | 140,38 Ref. 9220700400 | 147,40 Ref. 9220800400 | 152,68 Ref. 9220900400 | 171,98 Ref. 92201200400 | 177,23 Ref. 92201300400 | |||||
| 500 | 136,88 Ref. 9220200500 | 142,14 Ref. 9220300500 | 147,40 Ref. 9220400500 | 152,68 Ref. 9220500500 | 157,94 Ref. 9220600500 | 164,96 Ref. 9220700500 | 171,98 Ref. 9220800500 | 178,99 Ref. 9220900500 | 201,81 Ref. 92201200500 | 208,83 Ref. 92201300500 | |||||
| 600 | 156,18 Ref. 9220200600 | 163,20 Ref. 9220300600 | 168,46 Ref. 9220400600 | 175,48 Ref. 9220500600 | 180,75 Ref. 9220600600 | 189,52 Ref. 9220700600 | 196,54 Ref. 9220800600 | 205,31 Ref. 9220900600 | 229,88 Ref. 92201200600 | 238,66 Ref. 92201300600 | |||||
| 700 | 177,23 Ref. 9220200700 | 184,25 Ref. 9220300700 | 191,27 Ref. 9220400700 | 198,29 Ref. 9220500700 | 205,31 Ref. 9220600700 | 214,09 Ref. 9220700700 | 222,86 Ref. 9220800700 | 231,64 Ref. 9220900700 | 261,47 Ref. 92201200700 | 270,24 Ref. 92201300700 | |||||
| 800 | 198,29 Ref. 9220200800 | 205,31 Ref. 9220300800 | 212,33 Ref. 9220400800 | 219,35 Ref. 9220500800 | 228,13 Ref. 9220600800 | 236,90 Ref. 9220700800 | 247,43 Ref. 9220800800 | 259,71 Ref. 9220900800 | 289,55 Ref. 92201200800 | 300,08 Ref. 92201300800 | |||||
| 900 | 217,60 Ref. 9220200900 | 226,37 Ref. 9220300900 | 233,39 Ref. 9220400900 | 242,17 Ref. 9220500900 | 250,94 Ref. 9220600900 | 261,47 Ref. 9220700900 | 273,74 Ref. 9220800900 | 286,04 Ref. 9220900900 | 319,38 Ref. 92201200900 | 331,66 Ref. 92201300900 | |||||
| 345 | 93,01 Ref. 9221345300 | 98,26 Ref. 9221345400 | 103,54 Ref. 9221345500 | 108,80 Ref. 9221345600 | 114,07 Ref. 9221345700 | 121,09 Ref. 9221345800 | 126,34 Ref. 9221345900 | 131,62 Ref. 92213451000 | 145,66 Ref. 92213451200 | 156,18 Ref. 92213451400 | 168,46 Ref. 92213451600 | 180,75 Ref. 92213451800 | 194,79 Ref. 92213452000 | ||
| 510 | 119,32 Ref. 9221510300 | 124,60 Ref. 9221510400 | 131,62 Ref. 9221510500 | 138,64 Ref. 9221510600 | 145,66 Ref. 9221510700 | 152,68 Ref. 9221510800 | 161,44 Ref. 9221510900 | 168,46 Ref. 92215101000 | 184,25 Ref. 92215101200 | 200,05 Ref. 92215101400 | 215,85 Ref. 92215101600 | 229,88 Ref. 92215101800 | 247,43 Ref. 92215102000 | ||
| 675 | 143,90 Ref. 9221675300 | 150,92 Ref. 9221675400 | 159,70 Ref. 9221675500 | 166,72 Ref. 9221675600 | 177,23 Ref. 9221675700 | 186,01 Ref. 9221675800 | 194,79 Ref. 9221675900 | 203,56 Ref. 92216751000 | 222,86 Ref. 92216751200 | 242,17 Ref. 92216751400 | 261,47 Ref. 92216751600 | 279,02 Ref. 92216751800 | 300,08 Ref. 92216752000 | ||
| 840 | 170,21 Ref. 9221840300 | 178,99 Ref. 9221840400 | 187,77 Ref. 9221840500 | 196,54 Ref. 9221840600 | 207,07 Ref. 9221840700 | 217,60 Ref. 9221840800 | 228,13 Ref. 9221840900 | 240,41 Ref. 92218401000 | 263,22 Ref. 92218401200 | 284,28 Ref. 92218401400 | 307,10 Ref. 92218401600 | 329,90 Ref. 92218401800 | 352,71 Ref. 92218402000 | ||
| 1005 | 194,79 Ref. 92211005300 | 205,31 Ref. 92211005400 | 215,85 Ref. 92211005500 | 226,37 Ref. 92211005600 | 238,66 Ref. 92211005700 | 250,94 Ref. 92211005800 | 263,22 Ref. 92211005900 | 275,51 Ref. 922110051000 | 301,82 Ref. 922110051200 | 326,40 Ref. 922110051400 | 354,47 Ref. 922110051600 | 379,04 Ref. 922110051800 | 405,36 Ref. 922110052000 | ||
| 1170 | 221,11 Ref. 92211170300 | 231,64 Ref. 92211170400 | 243,92 Ref. 92211170500 | 254,45 Ref. 92211170600 | 268,49 Ref. 92211170700 | 284,28 Ref. 92211170800 | 298,32 Ref. 92211170900 | 312,36 Ref. 922111701000 | 342,19 Ref. 922111701200 | 370,27 Ref. 922111701400 | 400,10 Ref. 922111701600 | 428,17 Ref. 922111701800 | 458,01 Ref. 922111702000 | ||
| 1000 | 238,66 Ref. 92202001000 | 247,43 Ref. 92203001000 | 256,20 Ref. 92204001000 | 264,98 Ref. 92205001000 | 273,74 Ref. 92206001000 | 286,04 Ref. 92207001000 | 289,55 Ref. 92208001000 | 312,36 Ref. 92209001000 | 361,49 Ref. 922013001000 | ||||||
| 1100 | 259,71 Ref. 92202001100 | 268,49 Ref. 92203001100 | 287,78 Ref. 92205001100 | 298,32 Ref. 92206001100 | 310,60 Ref. 92207001100 | 324,64 Ref. 92208001100 | 338,67 Ref. 92209001100 | 379,04 Ref. 922012001100 | 393,08 Ref. 922013001100 | ||||||
| 1200 | 280,76 Ref. 92202001200 | 289,55 Ref. 92203001200 | 300,08 Ref. 92204001200 | 310,60 Ref. 92205001200 | 321,14 Ref. 92206001200 | 335,18 Ref. 92207001200 | 349,21 Ref. 92208001200 | 365,00 Ref. 92209001200 | 408,87 Ref. 922012001200 | 422,91 Ref. 922013001200 | |||||
| 1335 | 247,43 Ref. 92211335300 | 259,71 Ref. 92211335400 | 272,00 Ref. 92211335500 | 284,28 Ref. 92211335600 | 300,08 Ref. 92211335700 | 315,86 Ref. 92211335800 | 331,66 Ref. 92211335900 | 347,46 Ref. 922113351000 | 380,79 Ref. 922113351200 | 412,38 Ref. 922113351400 | 447,48 Ref. 922113351600 | 477,30 Ref. 922113351800 | 510,64 Ref. 922113352000 | ||
| 1500 | 272,00 Ref. 92211500300 | 286,04 Ref. 92211500400 | 300,08 Ref. 92211500500 | 314,12 Ref. 92211500600 | 331,66 Ref. 92211500700 | 349,21 Ref. 92211500800 | 366,75 Ref. 92211500900 | 384,31 Ref. 922115001000 | 421,16 Ref. 922115001200 | 456,24 Ref. 922115001400 | 493,10 Ref. 922115001600 | 528,19 Ref. 922115001800 | 563,29 Ref. 922115002000 | ||
| 1665 | 298,32 Ref. 92211665300 | 312,36 Ref. 92211665400 | 328,16 Ref. 92211665500 | 343,94 Ref. 92211665600 | 363,25 Ref. 92211665700 | 382,55 Ref. 92211665800 | 401,85 Ref. 92211665900 | 421,16 Ref. 922116651000 | 461,52 Ref. 922116651200 | 498,36 Ref. 922116651400 | 540,48 Ref. 922116651600 | 577,33 Ref. 922116651800 | 615,93 Ref. 922116652000 | ||
| 1830 | 324,64 Ref. 92211830300 | 340,44 Ref. 92211830400 | 356,23 Ref. 92211830500 | 373,77 Ref. 92211830600 | 394,83 Ref. 92211830700 | 415,89 Ref. 92211830800 | 435,19 Ref. 92211830900 | 456,24 Ref. 922118301000 | 500,12 Ref. 922118301200 | 542,23 Ref. 922118301400 | 586,11 Ref. 922118301600 | 629,97 Ref. 922118301800 | 668,51 Ref. 922118302000 | ||
| 1995 | 349,21 Ref. 92211995300 | 368,51 Ref. 92211995400 | 386,06 Ref. 92211995500 | 403,61 Ref. 92211995600 | 426,42 Ref. 92211995700 | 447,48 Ref. 92211995800 | 470,28 Ref. 92211995900 | 493,10 Ref. 922119951000 | 540,48 Ref. 922119951200 | 584,35 Ref. 922119951400 | 633,49 Ref. 922119951600 | 677,36 Ref. 922119951800 | 721,22 Ref. 922119952000 |
