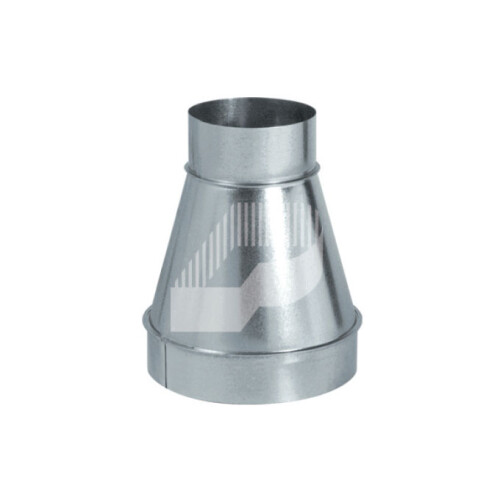

La reducción concéntrica con junta de goma es la solución técnica superior para transiciones de diámetro en redes de ventilación. Gracias a su junta de estanqueidad integrada en las bocas, garantiza una conexión hermética Clase C, eliminando las fugas de aire y optimizando el rendimiento de los equipos de HVAC. Fabricada en acero galvanizado, asegura un cambio de sección simétrico que minimiza las turbulencias.
Este accesorio es ideal para instalaciones de climatización que buscan la máxima eficiencia energética y un montaje rápido tipo ""macho-hembra"" sin necesidad de selladores externos. La junta de caucho EPDM proporciona una unión elástica y duradera que absorbe vibraciones, siendo perfecta para sistemas de extracción industrial y ventilación comercial donde el ahorro operativo y el bajo nivel sonoro son prioritarios.
| Ø d (mm) | 80 | 100 | 125 | 150 | 160 | 180 | 200 | 225 | 250 | 280 | 300 | 315 | 355 | 400 | 450 | 500 | 560 | 600 | 630 | 710 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ø D (mm) | € | € | € | € | € | € | € | € | € | € | € | € | € | € | € | € | € | € | € | € |
| 100 | 7,21 Ref. 506100080 | |||||||||||||||||||
| 125 | 8,67 Ref. 506125080 | 8,90 Ref. 506125100 | ||||||||||||||||||
| 150 | 10,35 Ref. 506150080 | 10,58 Ref. 506150100 | 11,03 Ref. 506150125 | |||||||||||||||||
| 160 | 11,42 Ref. 506160080 | 11,64 Ref. 506160100 | 12,11 Ref. 506160125 | 12,21 Ref. 506160150 | ||||||||||||||||
| 180 | 12,27 Ref. 506180080 | 12,71 Ref. 506180100 | 12,94 Ref. 506180125 | 13,05 Ref. 506180150 | 14,24 Ref. 506180160 | |||||||||||||||
| 200 | 13,84 Ref. 506200080 | 14,52 Ref. 506200100 | 14,63 Ref. 506200125 | 14,73 Ref. 506200150 | 15,12 Ref. 506200160 | 15,30 Ref. 506200180 | ||||||||||||||
| 225 | 15,98 Ref. 506225080 | 16,21 Ref. 506225100 | 16,43 Ref. 506225125 | 16,54 Ref. 506225150 | 16,98 Ref. 506225160 | 17,10 Ref. 506225180 | 17,10 Ref. 506225200 | |||||||||||||
| 250 | 17,78 Ref. 506250080 | 18,01 Ref. 506250100 | 18,23 Ref. 506250125 | 18,34 Ref. 506250150 | 18,10 Ref. 506250160 | 19,02 Ref. 506250180 | 19,02 Ref. 506250200 | 18,90 Ref. 506250225 | ||||||||||||
| 280 | 20,14 Ref. 506280080 | 20,25 Ref. 506280100 | 20,59 Ref. 506280125 | 20,71 Ref. 506280150 | 20,99 Ref. 506280160 | 21,04 Ref. 506280180 | 20,02 Ref. 506280200 | 20,02 Ref. 506280225 | 20,25 Ref. 506280250 | |||||||||||
| 300 | 22,27 Ref. 506300080 | 22,61 Ref. 506300100 | 22,83 Ref. 506300125 | 22,83 Ref. 506300150 | 23,24 Ref. 506300160 | 23,40 Ref. 506300180 | 23,52 Ref. 506300200 | 23,29 Ref. 506300225 | 23,29 Ref. 506300250 | 23,62 Ref. 506300280 | ||||||||||
| 315 | 24,62 Ref. 506315080 | 24,90 Ref. 506315100 | 25,12 Ref. 506315125 | 25,18 Ref. 506315150 | 25,57 Ref. 506315160 | 25,72 Ref. 506315180 | 25,85 Ref. 506315200 | 25,71 Ref. 506315225 | 25,78 Ref. 506315250 | 25,97 Ref. 506315280 | 26,38 Ref. 506315300 | |||||||||
| 355 | 27,00 Ref. 506355080 | 27,23 Ref. 506355100 | 27,46 Ref. 506355125 | 27,46 Ref. 506355150 | 27,90 Ref. 506355160 | 27,90 Ref. 506355180 | 27,90 Ref. 506355200 | 28,13 Ref. 506355225 | 28,23 Ref. 506355250 | 28,36 Ref. 506355280 | 28,58 Ref. 506355300 | 30,28 Ref. 506355315 | ||||||||
| 400 | 31,05 Ref. 506400080 | 31,28 Ref. 506400100 | 31,39 Ref. 506400125 | 31,50 Ref. 506400150 | 31,87 Ref. 506400160 | 32,07 Ref. 506400180 | 32,29 Ref. 506400200 | 32,29 Ref. 506400225 | 32,29 Ref. 506400250 | 32,40 Ref. 506400280 | 32,63 Ref. 506400300 | 32,33 Ref. 506400315 | 32,07 Ref. 506400355 | |||||||
| 450 | 35,54 Ref. 506450100 | 35,77 Ref. 506450125 | 35,90 Ref. 506450150 | 36,30 Ref. 506450160 | 36,46 Ref. 506450180 | 36,56 Ref. 506450200 | 36,46 Ref. 506450225 | 36,56 Ref. 506450250 | 36,79 Ref. 506450280 | 37,35 Ref. 506450300 | 36,94 Ref. 506450315 | 36,46 Ref. 506450355 | 35,33 Ref. 506450400 | |||||||
| 500 | 42,29 Ref. 506500100 | 42,52 Ref. 506500125 | 42,52 Ref. 506500150 | 42,96 Ref. 506500160 | 43,08 Ref. 506500180 | 43,21 Ref. 506500200 | 43,21 Ref. 506500225 | 43,21 Ref. 506500250 | 43,42 Ref. 506500280 | 43,87 Ref. 506500300 | 43,47 Ref. 506500315 | 42,98 Ref. 506500355 | 38,60 Ref. 506500400 | 40,61 Ref. 506500450 | ||||||
| 560 | 47,70 Ref. 506560125 | 47,70 Ref. 506560150 | 48,09 Ref. 506560160 | 48,26 Ref. 506560180 | 48,38 Ref. 506560200 | 48,38 Ref. 506560225 | 48,38 Ref. 506560250 | 48,48 Ref. 506560280 | 48,60 Ref. 506560300 | 48,38 Ref. 506560315 | 48,04 Ref. 506560355 | 46,91 Ref. 506560400 | 45,11 Ref. 506560450 | 45,43 Ref. 506560500 | ||||||
| 600 | 54,45 Ref. 506600150 | 54,79 Ref. 506600160 | 54,90 Ref. 506600180 | 55,12 Ref. 506600200 | 55,01 Ref. 506600225 | 54,90 Ref. 506600250 | 55,23 Ref. 506600280 | 55,35 Ref. 506600300 | 55,01 Ref. 506600315 | 54,90 Ref. 506600355 | 53,77 Ref. 506600400 | 52,42 Ref. 506600450 | 51,18 Ref. 506600500 | 49,96 Ref. 506600560 | ||||||
| 630 | 60,64 Ref. 506630150 | 61,08 Ref. 506630160 | 61,31 Ref. 506630180 | 61,42 Ref. 506630200 | 61,42 Ref. 506630225 | 62,54 Ref. 506630250 | 61,65 Ref. 506630280 | 62,89 Ref. 506630300 | 61,87 Ref. 506630315 | 60,75 Ref. 506630355 | 60,08 Ref. 506630400 | 58,84 Ref. 506630450 | 57,83 Ref. 506630500 | 56,48 Ref. 506630560 | 55,35 Ref. 506630600 | |||||
| 710 | 70,87 Ref. 506710150 | 71,33 Ref. 506710160 | 71,43 Ref. 506710180 | 71,55 Ref. 506710200 | 71,43 Ref. 506710225 | 71,10 Ref. 506710250 | 71,66 Ref. 506710280 | 71,89 Ref. 506710300 | 71,55 Ref. 506710315 | 71,33 Ref. 506710355 | 70,64 Ref. 506710400 | 68,96 Ref. 506710450 | 68,73 Ref. 506710500 | 66,37 Ref. 506710560 | 65,37 Ref. 506710600 | 63,33 Ref. 506710630 | ||||
| 800 | 86,51 Ref. 506800200 | 86,51 Ref. 506800225 | 86,51 Ref. 506800250 | 87,25 Ref. 506800280 | 86,96 Ref. 506800300 | 86,62 Ref. 506800315 | 86,39 Ref. 506800355 | 85,26 Ref. 506800400 | 84,14 Ref. 506800450 | 82,91 Ref. 506800500 | 81,67 Ref. 506800560 | 80,77 Ref. 506800600 | 78,74 Ref. 506800630 | 80,43 Ref. 506800710 | ||||||
| 900 | 103,03 Ref. 506900450 | 102,29 Ref. 506900500 | 101,74 Ref. 506900560 | 100,66 Ref. 506900600 | 98,63 Ref. 506900630 | 100,47 Ref. 506900710 |
