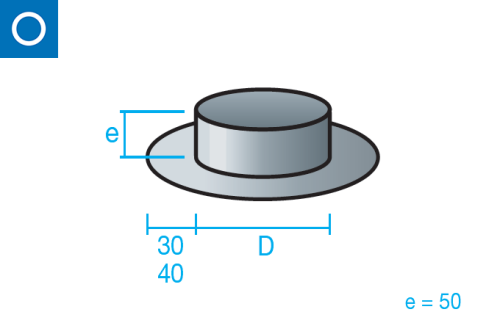

El manguito con pestaña circular es el accesorio de montaje diseñado para la conexión de conductos a superficies planas, máquinas o cámaras de aire. Disponible con pestaña de 30 o 40 mm, esta ala perimetral proporciona una base de apoyo amplia que facilita el remachado, atornillado o sellado, garantizando una unión mecánica estable y profesional.
Fabricado en acero galvanizado, su cuerpo cilíndrico está dimensionado para encajar perfectamente con tubería helicoidal o flexible. Es la solución ideal en sistemas HVAC para remates en muros, salidas de cajas de ventilación o conexiones a plenums de difusión, ofreciendo una alta resistencia estructural y una excelente durabilidad frente a la corrosión.
| Tubo | accesorio | con junta de goma - tubo | ||
| Ref. | 9010 | 9110 | 90610 | |
|---|---|---|---|---|
| Pestaña (mm) | Ø D (mm) | € | € | € |
| 30 | 80 | 5,96 Ref. 9010080 | 5,96 Ref. 9110080 | 6,75 Ref. 90610080 |
| 30 | 100 | 5,96 Ref. 9010100 | 5,96 Ref. 9110100 | 6,98 Ref. 90610100 |
| 30 | 125 | 5,96 Ref. 9010125 | 5,96 Ref. 9110125 | 7,21 Ref. 90610125 |
| 30 | 140 | 5,96 Ref. 9010140 | 5,96 Ref. 9110140 | |
| 30 | 150 | 5,96 Ref. 9010150 | 5,96 Ref. 9110150 | 7,32 Ref. 90610150 |
| 30 | 160 | 5,96 Ref. 9010160 | 5,96 Ref. 9110160 | 7,77 Ref. 90610160 |
| 30 | 175 | 5,96 Ref. 9010175 | 5,96 Ref. 9110175 | |
| 30 | 180 | 5,96 Ref. 9010180 | 5,96 Ref. 9110180 | 7,99 Ref. 90610180 |
| 30 | 200 | 5,96 Ref. 9010200 | 5,96 Ref. 9110200 | 8,21 Ref. 90610200 |
| 30 | 225 | 6,55 Ref. 9010225 | 6,55 Ref. 9110225 | 9,00 Ref. 90610225 |
| 30 | 250 | 7,72 Ref. 9010250 | 7,72 Ref. 9110250 | 10,35 Ref. 90610250 |
| 30 | 280 | 8,77 Ref. 9010280 | 8,77 Ref. 9110280 | 12,05 Ref. 90610280 |
| 30 | 300 | 9,72 Ref. 9010300 | 9,72 Ref. 9110300 | 13,50 Ref. 90610300 |
| 30 | 315 | 10,24 Ref. 9010315 | 10,24 Ref. 9110315 | 14,17 Ref. 90610315 |
| 30 | 355 | 10,77 Ref. 9010355 | 10,77 Ref. 9110355 | 14,96 Ref. 90610355 |
| 30 | 400 | 13,11 Ref. 9010400 | 13,11 Ref. 9110400 | 17,44 Ref. 90610400 |
| 30 | 450 | 13,81 Ref. 9010450 | 13,81 Ref. 9110450 | |
| 30 | 500 | 15,45 Ref. 9010500 | 15,45 Ref. 9110500 | |
| 30 | 560 | 22,83 Ref. 90610560 | ||
| 40 | 560 | 16,97 Ref. 9010560 | 16,97 Ref. 9110560 | |
| 30 | 600 | 25,32 Ref. 90610600 | ||
| 40 | 600 | 18,25 Ref. 9010600 | 18,25 Ref. 9110600 | |
| 40 | 630 | 24,92 Ref. 9010630 | 24,92 Ref. 9110630 | 32,35 Ref. 90610630 |
| 40 | 710 | 26,80 Ref. 9010710 | 26,80 Ref. 9110710 | 38,72 Ref. 90610710 |
| 40 | 750 | 28,56 Ref. 9010750 | 28,56 Ref. 9110750 | |
| 40 | 800 | 30,41 Ref. 9010800 | 30,41 Ref. 9110800 | 44,82 Ref. 90610800 |
| 40 | 900 | 45,97 Ref. 9010900 | 45,97 Ref. 9110900 | 67,39 Ref. 90610900 |
| 40 | 1000 | 51,24 Ref. 90101000 | 51,24 Ref. 91101000 | |
| 40 | 1120 | 56,16 Ref. 90101120 | 56,16 Ref. 91101120 | |
| 40 | 1200 | 61,77 Ref. 90101200 | 61,77 Ref. 91101200 | |
| 40 | 1250 | 64,45 Ref. 90101250 | 64,45 Ref. 91101250 | |
| 40 | 1500 | 72,06 Ref. 90101500 | 72,06 Ref. 91101500 |
