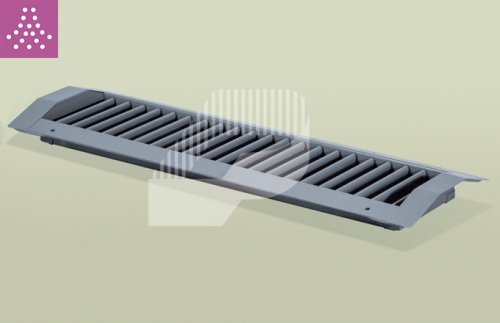

Ref. 3
L x B mm Ø Conducte ( mín.max.)
425 x 75 150 400 13,81 Ref. 3425075
525 x 75 150 400 15,76 Ref. 3525075
625 x 75 150 400 17,82 Ref. 3625075
825 x 75 150 400 32,00 Ref. 3825075
1.025 x 75 150 400 32,37 Ref. 31025075
425 x 125 315 900 15,86 Ref. 3425125
525 x 125 315 900 18,12 Ref. 3525125
625 x 125 315 900 20,43 Ref. 3625125
825 x 125 315 900 34,99 Ref. 3825125
1.025 x 125 315 900 36,65 Ref. 31025125
425 x 225 630 1400 20,25 Ref. 3425225
525 x 225 630 1400 23,19 Ref. 3525225
625 x 225 630 1400 25,48 Ref. 3625225
825 x 225 630 1400 38,24 Ref. 3825225
1.025 x 225 630 1400 40,71 Ref. 31025225
