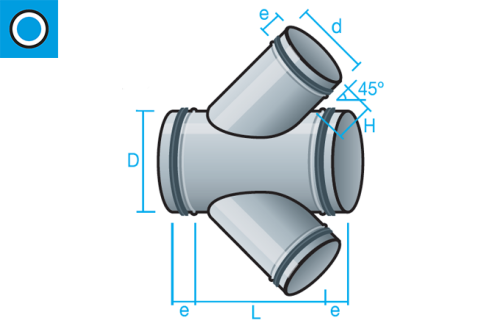

Creu amb reducció a 45 junta de goma

Creu amb Reducció a 45° amb Junta de Goma: Estanquitat Superior

La creu amb reducció a 45° amb junta de goma és la solució tècnica definitiva per a sistemes de ventilació que exigeixen un rendiment òptim. Gràcies a la seva junta d'estanquitat integrada, aquest accessori garanteix una connexió hermètica classe C, eliminant les fugues d'aire i reduint dràsticament el consum energètic dels ventiladors. Fabricada en acer galvanitzat, el seu angle de 45 graus assegura una distribució de l'aire suau i sense sorolls.

Aquest component és essencial en projectes d'HVAC i extracció on es busca un muntatge ràpid ""mascle-femella"" sense necessitat de segelladors addicionals. La junta de cautxú EPDM resisteix variacions de temperatura i assegura que el flux d'aire es mantingui constant en cada ramal. Inverteixi en una xarxa de climatització professional que compleixi amb els estàndards més alts d'eficiència i durabilitat estructural.

Ø d (mm) 80 100 125 150 160 180 200 225 250 280 300 315 355 400 450 500 560 600 630 710
Ø D (mm) € € € € € € € € € € € € € € € € € € € €
100 81,45 Ref. 54628100080
125 15,86 Ref. 54628125080 19,13 Ref. 54628125100
150 16,87 Ref. 54628150080 20,25 Ref. 54628150100 26,11 Ref. 54628150125
160 17,89 Ref. 54628160080 21,32 Ref. 54628160100 27,35 Ref. 54628160125 30,08 Ref. 54628160150
180 18,45 Ref. 54628180080 21,94 Ref. 54628180100 28,13 Ref. 54628180125 32,29 Ref. 54628180150 35,51 Ref. 54628180160
200 19,36 Ref. 54628200080 22,96 Ref. 54628200100 28,92 Ref. 54628200125 33,08 Ref. 54628200150 35,81 Ref. 54628200160 38,14 Ref. 54628200180
225 20,71 Ref. 54628225080 24,41 Ref. 54628225100 30,83 Ref. 54628225125 35,33 Ref. 54628225150 38,21 Ref. 54628225160 40,73 Ref. 54628225180 43,99 Ref. 54628225200
250 21,61 Ref. 54628250080 25,32 Ref. 54628250100 31,72 Ref. 54628250125 36,23 Ref. 54628250150 39,19 Ref. 54628250160 41,73 Ref. 54628250180 45,11 Ref. 54628250200 50,06 Ref. 54628250225
280 23,06 Ref. 54628280080 26,77 Ref. 54628280100 33,30 Ref. 54628280125 37,80 Ref. 54628280150 40,84 Ref. 54628280160 43,42 Ref. 54628280180 46,79 Ref. 54628280200 51,86 Ref. 54628280225 57,27 Ref. 54628280250
300 24,53 Ref. 54628300080 28,46 Ref. 54628300100 34,88 Ref. 54628300125 39,48 Ref. 54628300150 42,52 Ref. 54628300160 45,11 Ref. 54628300180 48,83 Ref. 54628300200 53,54 Ref. 54628300225 58,95 Ref. 54628300250 63,79 Ref. 54628300280
315 26,16 Ref. 54628315080 31,44 Ref. 54628315100 36,96 Ref. 54628315125 41,40 Ref. 54628315150 44,50 Ref. 54628315160 47,14 Ref. 54628315180 51,02 Ref. 54628315200 55,51 Ref. 54628315225 61,65 Ref. 54628315250 66,09 Ref. 54628315280 68,79 Ref. 54628315300
355 27,79 Ref. 54628355080 34,42 Ref. 54628355100 39,04 Ref. 54628355125 43,31 Ref. 54628355150 46,46 Ref. 54628355160 49,17 Ref. 54628355180 53,21 Ref. 54628355200 57,49 Ref. 54628355225 64,35 Ref. 54628355250 68,40 Ref. 54628355280 73,79 Ref. 54628355300 81,33 Ref. 54628355315
400 28,92 Ref. 54628400080 35,54 Ref. 54628400100 40,17 Ref. 54628400125 44,66 Ref. 54628400150 47,87 Ref. 54628400160 50,62 Ref. 54628400180 54,67 Ref. 54628400200 59,17 Ref. 54628400225 66,15 Ref. 54628400250 70,20 Ref. 54628400280 75,60 Ref. 54628400300 82,23 Ref. 54628400315 88,87 Ref. 54628400355
450 30,27 Ref. 54628450080 36,89 Ref. 54628450100 41,73 Ref. 54628450125 46,35 Ref. 54628450150 49,45 Ref. 54628450160 52,09 Ref. 54628450180 56,71 Ref. 54628450200 60,97 Ref. 54628450225 68,06 Ref. 54628450250 71,99 Ref. 54628450280 77,85 Ref. 54628450300 83,81 Ref. 54628450315 89,77 Ref. 54628450355 108,78 Ref. 54628450400
500 33,42 Ref. 54628500080 40,61 Ref. 54628500100 45,67 Ref. 54628500125 50,52 Ref. 54628500150 53,94 Ref. 54628500160 56,91 Ref. 54628500180 61,42 Ref. 54628500200 66,37 Ref. 54628500225 73,79 Ref. 54628500250 78,18 Ref. 54628500280 84,14 Ref. 54628500300 90,51 Ref. 54628500315 96,85 Ref. 54628500355 116,99 Ref. 54628500400 138,37 Ref. 54628500450
560 35,67 Ref. 54628560080 42,98 Ref. 54628560100 48,04 Ref. 54628560125 53,10 Ref. 54628560150 56,48 Ref. 54628560160 59,40 Ref. 54628560180 64,24 Ref. 54628560200 69,19 Ref. 54628560225 76,95 Ref. 54628560250 81,45 Ref. 54628560280 87,52 Ref. 54628560300 93,71 Ref. 54628560315 100,12 Ref. 54628560355 120,48 Ref. 54628560400 142,63 Ref. 54628560450 158,83 Ref. 54628560500
600 38,82 Ref. 54628600080 46,23 Ref. 54628600100 51,41 Ref. 54628600125 56,58 Ref. 54628600150 59,96 Ref. 54628600160 62,89 Ref. 54628600180 67,81 Ref. 54628600200 73,01 Ref. 54628600225 80,77 Ref. 54628600250 85,16 Ref. 54628600280 91,35 Ref. 54628600300 97,74 Ref. 54628600315 103,83 Ref. 54628600355 125,89 Ref. 54628600400 146,34 Ref. 54628600450 163,67 Ref. 54628600500 185,04 Ref. 54628600560
630 60,08 Ref. 54628630150 63,56 Ref. 54628630160 66,48 Ref. 54628630180 71,33 Ref. 54628630200 76,60 Ref. 54628630225 84,70 Ref. 54628630250 89,77 Ref. 54628630280 96,18 Ref. 54628630300 102,37 Ref. 54628630315 108,89 Ref. 54628630355 129,47 Ref. 54628630400 151,97 Ref. 54628630450 167,84 Ref. 54628630500 190,90 Ref. 54628630560 209,23 Ref. 54628630600
710 76,83 Ref. 54628710180 81,33 Ref. 54628710200 87,41 Ref. 54628710225 95,51 Ref. 54628710250 101,17 Ref. 54628710280 106,98 Ref. 54628710300 113,28 Ref. 54628710315 119,34 Ref. 54628710355 140,72 Ref. 54628710400 163,44 Ref. 54628710450 181,00 Ref. 54628710500 202,71 Ref. 54628710560 221,26 Ref. 54628710600 239,93 Ref. 54628710630
800 96,97 Ref. 54628800225 105,51 Ref. 54628800250 110,81 Ref. 54628800280 123,96 Ref. 54628800300 127,34 Ref. 54628800315 131,06 Ref. 54628800355 168,95 Ref. 54628800400 175,71 Ref. 54628800450 192,47 Ref. 54628800500 215,64 Ref. 54628800560 234,76 Ref. 54628800600 253,89 Ref. 54628800630 281,22 Ref. 54628800710
